/   Designed Without Compromise

Hit The Ground Running

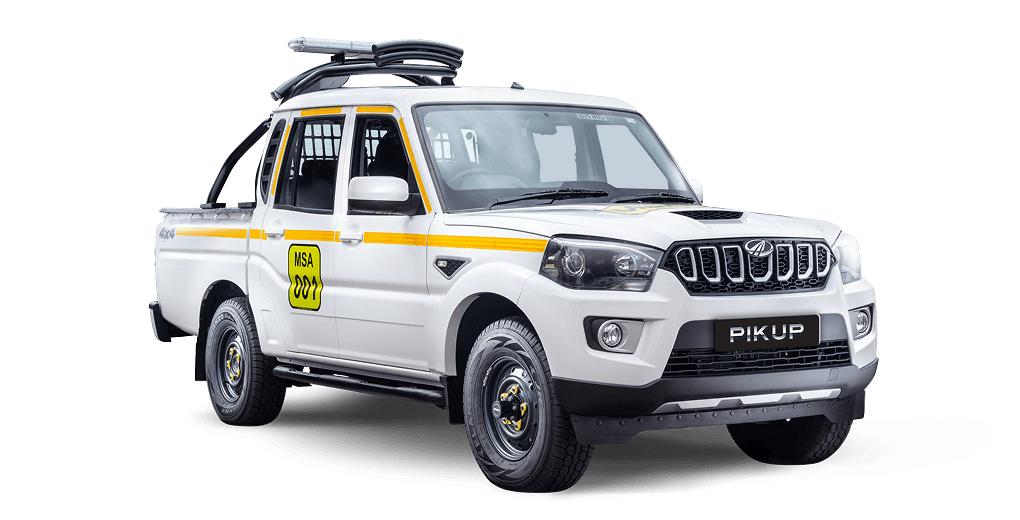

Developed, designed, and fitted to suit South African conditions and regulations. We know how strict the safety regulations are in our country and every requirement has been met in our mining vehicles to satisfy the needs of open cast mining and large-scale construction operations. Durability, reliability, and affordability combine to make the Pik Up S6 Mining a great choice for commercial mining.

/   Features

Customised As Standard For Mining & Industry

Swipe righ to see more >
/   Specifications

Made For Mining

Engine capacity 2179 сс
Number of cylinders 4
Fuel type Diesel
Aspiration Turbocharger
Fuel injection type Common rail
Bore x stroke 85 x 96 mm
Compression ratio 16.5:1
Power output 103 kW @ 3750 r/min
Torque output 320 Nm @ 1500-2800 r/min
Fuel consumption – combined 7.9 1/100km (4WD)
CO, Emission 211 gm/km (4WD)
Emission – Euro stage Euro 2
Drive type 2WD & 4WD
Transmission 6-speed manual
Low range on 4WD
Mechanical differential lock Rear axle MLD
Wheel rim size 6.5J X 16″
Tyre size 245/75R16
Spare wheel Full size spare
Spare wheel lock Yes
GCM 5650 kg
GVM 3150 kg
Payload 995 kg (4WD)
Legal towing weight – braked 2500 kg
Legal towing weight – unbraked 750 kg
Overall length 5175 mm
Overall width 1820 mm
Overall height (unladen) 1915 mm
Minimum ground clearance 210 mm
Wheelbase 3040 mm
Track – front 1450 mm
Track – rear 1450 mm
Approach angle 34°
Breakover angle 18°
Departure angle 15°
Fuel tank capacity 80 litres
Turning circle radius 6.7 m
Load area (length x width x depth) 1489 X 1520 X 550 mm
Air conditioner Manual
Heated rear window/demister
Power windows
Electric mirrors
Power steering
Tiltable steering
Central locking
Keyless entry
12V charging points – front and rear
Integrated audio system with USB and auxiliary
Swivel interior reading lamps
Headrests
Upholstery Fabric
Illuminated key ring
Swivel interior reading lamps
Remote fuel cap (electrically/key)
Adjustable headrests (rear/front)
Upholstery Fabric
Illuminated keyring
Micro hybrid (Start/stop)
Digital immobilser
Follow me home headlamps

Anti-lock Braking System (ABS)
Electronic Brake Distribution (EBD)
Seat belt pretensioner
Air-bags (driver/passenger)
Side impact protection bars
Collapsible steering column
Seat belt reminder
Auto-locking doors
Front fog lamps
Dual projector headlamps
High-level brake light
Heated rear window X
Colour-coded bumpers
Colour-coded mirrors
Colour-coded door handles
Mud flaps
Side step
Integrated bonnet scoop
Side mouldings
Rubberised load bin
External ROPS
Mining spec kit
Fire Extinguisher
Heavy-duty seat covers
First aid kit
COVID-19 kit
